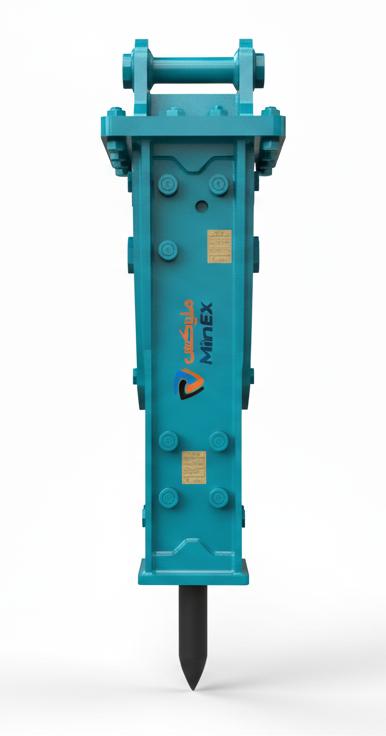

MinEx hydraulic rock breakers are designed to meet the demands of heavy, medium, and light-duty rock breaking across various applications such as mining, quarries, construction projects, and infrastructure works.
The breakers are available in multiple mounting types, including top-mount, side-mount, and box-type, providing high flexibility to adapt to different working environments.
HIGHLIGHTS
| Product | UNIT | MXRB40 | MXRB45 | MXRB53 | MXRB68 | MXRB75 | MXRB85 | MXRB100 | MXRB135 | MXRB140 | MXRB140A | MXRB155 | MXRB165 | MXRB175 | MXRB185 | MXRB195 | MXRB200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | kg | 90 | 110 | 146 | 261 | 354 | 502 | 749 | 1602 | 1801 | 1855 | 2628 | 3009 | 4001 | 4460 | 5600 | 6230 |
| Impact Frequency | bpm | 800-1400 | 700-1200 | 600-1100 | 500-900 | 400-800 | 380-800 | 350-700 | 350-600 | 350-500 | 350-500 | 250-350 | 200-300 | 120-180 | 100-200 | 100-180 | 100-150 |
| Operating Oil Pressure | bar | 90-120 | 90-120 | 90-120 | 110-140 | 120-150 | 120-160 | 150-170 | 160-180 | 160-180 | 160-180 | 160-190 | 180-200 | 200-220 | 220-240 | 220-240 | 260-300 |
| Relief | bar | 110-140 | 110-140 | 110-140 | 150-170 | 170-190 | 170-190 | 170-190 | 180-200 | 190-210 | 200-210 | 200-220 | 200-240 | 220-260 | 240-280 | 260-280 | 300-340 |
| Operating Flux | L/min | 15-30 | 20-40 | 40-70 | 40-70 | 45-85 | 50-100 | 80-110 | 120-180 | 160-210 | 160-210 | 180-240 | 200-260 | 210-280 | 220-240 | 230-320 | 260-340 |
| Rod Dimeter | mm | 40 | 45 | 53 | 68 | 75 | 85 | 100 | 135 | 140 | 140 | 155 | 165 | 175 | 185 | 195 | 200 |
| Size Of Tube | inch | ½ | ½ | ½ | ½ | ½ | ¾ | ¾ | 1 | 1 | 1 | 1¼ | 1¼ | 1¼ | 1¼ | 1¼ | 1¼ |
| Applicable Excavator | ton | 0.8-2.5 | 1.2-3.0 | 2.0-4.5 | 4.0-7.0 | 6.0-9.0 | 8.0-1.2.0 | 1.1.0-1.6.0 | 1.6.0-21.0 | 18.0-26.0 | 18.0-26.0 | 28.0-35.0 | 30.0-45.0 | 40.0-55.0 | 45.0-60.0 | 50-65 | 50-65 |
| Product | UNIT | MXRB40 | MXRB45 | MXRB53 | MXRB68 | MXRB75 | MXRB85 | MXRB100 | MXRB135 | MXRB140 | MXRB140A | MXRB155 | MXRB165 | MXRB175 | MXRB185 | MXAR195 | MXARB200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | kg | 89 | 118 | 159 | 265 | 375 | 513 | 745 | 1695 | 1810 | 1864 | 2663 | 3235 | 4427 | 4428 | 4720 | 4880 |
| Impact Frequency | bpm | 800-1400 | 700-1200 | 600-1100 | 500-900 | 400-800 | 380-800 | 350-700 | 350-600 | 350-500 | 350-500 | 250-350 | 200-300 | 120-180 | 100-200 | 100-180 | 100-150 |
| Operating Oil Pressure | bar | 90-120 | 90-120 | 90-120 | 110-140 | 120-150 | 120-160 | 150-170 | 160-180 | 160-180 | 160-180 | 160-190 | 180-200 | 200-220 | 220-240 | 220-240 | 260-300 |
| Relief | bar | 110-140 | 110-140 | 110-140 | 150-170 | 170-190 | 170-190 | 170-190 | 180-200 | 190-210 | 200-210 | 200-220 | 200-240 | 220-260 | 240-280 | 260-280 | 300-340 |
| Operating Flux | L/min | 15-30 | 20-40 | 40-70 | 40-70 | 45-85 | 50-100 | 80-110 | 120-180 | 160-210 | 160-210 | 180-240 | 200-260 | 210-280 | 220-240 | 230-320 | 260-340 |
| Rod Diameter | mm | 40 | 45 | 53 | 68 | 75 | 85 | 100 | 135 | 140 | 140 | 155 | 165 | 175 | 185 | 195 | 200 |
| Size of Tube | inch | ½ | ½ | ½ | ½ | ½ | ¾ | ¾ | 1 | 1 | 1 | 1¼ | 1¼ | 1¼ | 1¼ | 1¼ | 1¼ |
| Applicable Excavator | ton | 0.8-2.5 | 1.2-3.0 | 2.0-4.5 | 4.0-7.0 | 6.0-9.0 | 8.0-1.2.0 | 1.1.0-1.6.0 | 1.6.0-21.0 | 18.0-26.0 | 18.0-26.0 | 28.0-35.0 | 30.0-45.0 | 40.0-55.0 | 45.0-60.0 | 50-65 | 50-65 |
| Product | UNIT | MXRB40 | MXRB45 | MXRB53 | MXRB68 | MXRB75 | MXRB85 | MXRB100 | MXRB135 | MXRB140 | MXRB140A | MXRB155 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | Kg | 143 | 168 | 218 | 463 | 436 | 780 | 886 | 1320 | 1768 | 1822 | 2379 |
| Impact Frequency | bpm | 800-1400 | 700-1200 | 600-1100 | 500-900 | 400-800 | 380-800 | 350-700 | 350-600 | 350-500 | 350-500 | 250-350 |
| Operating Oil Pressure | bar | 90-120 | 90-120 | 90-120 | 110-140 | 120-150 | 120-160 | 150-170 | 160-180 | 160-180 | 160-180 | 160-190 |
| Relief | bar | 110-140 | 110-140 | 110-140 | 150-170 | 170-190 | 170-190 | 170-190 | 180-200 | 190-210 | 200-210 | 200-220 |
| Operating Flux | L/min | 15-30 | 20-40 | 40-70 | 40-70 | 45-85 | 50-100 | 80-110 | 120-180 | 160-210 | 160-210 | 180-240 |
| Rod Diameter | mm | 40 | 45 | 53 | 68 | 75 | 85 | 100 | 135 | 140 | 140 | 155 |
| Size Of Tube | inch | ½ | ½ | ½ | ½ | ½ | ¾ | ¾ | 1 | 1 | 1 | 1¼ |
| Applicable Excavator | ton | 0.8-2.5 | 1.2-3.0 | 2.0-4.5 | 4.0-7.0 | 6.0-9.0 | 8.0-1.2.0 | 1.1.0-1.6.0 | 1.6.0-21.0 | 18.0-26.0 | 18.0-26.0 | 28.0-35.0 |
