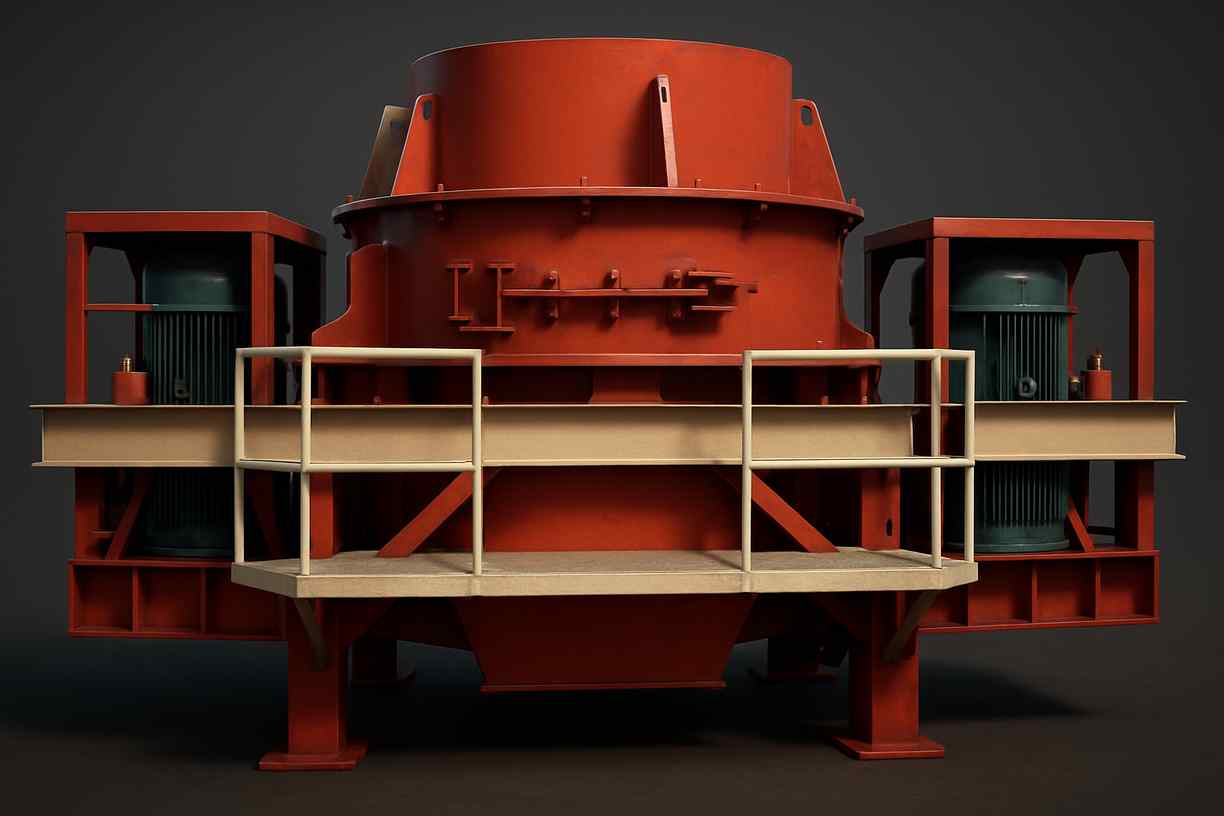

تُعدّ الكسارات التصادمية ذات المحور العمودي (VSI) من ماينكس الحل الأمثل لإنتاج بحص عالي الجودة ذو شكل مدوّر مطابق للمواصفات ذو مقاسات صغيرة أقل من 10 ملم. تعتمد تقنيتنا المتطورة في التكسير على تحقيق شكل متجانس ودقيق، مما يجعلها مثالية للمستخدمين الباحثين عن منتجات نهائية مدوّرة تُستخدم في: الخرسانة، الأسفلت، أعمال البنية التحتية، الرمال الصناعية، المعادن الصناعية، وتطبيقات إعادة التدوير.
تم تجهيز الكسارات التصادمية ذات المحور العمودي (VSI) من ماينكس بنظام تشحيم أوتوماتيكي متطور.
الميزات
| MODEL | CAPACITY (t/h) | THE MAX FEEDING SIZE (mm) | SPEED (r/min) | DOUBLE MOTOR POWER (Kw) | OVERALL DIMENSION (L*W*H) (mm) | WEIGHT (t) | DOUBLE OIL PUMP MOTOR POWER (Kw) | SECURITY | OVERALL DIMENSION (L*W*H (mm) | TANK HEATER POWER (Kw) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Surrounding Feed and Center Feed | Full Center Feed | Soft Stone | Hard Stone | |||||||||
| VSI7611 | 120-180 | 60-90 | <35 | <30 | 1700-1930 | 2*55 | 4100*2250*2315 | 8 | 2*0.55 | One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return. Air cooler lowers oil temperature, heater warms up oil temperature in winter. | 1200*790*1120 | 2 |
| VSI8518 | 200-2560 | 100-130 | <40 | <35 | 1520-1690 | 2*90 | 4160*2300*2476 | 12 | 2*0.55 | One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return. Air cooler lowers oil temperature, heater warms up oil temperature in winter. | 1200*790*1120 | 2 |
| VSI9526 | 300-380 | 150-190 | <45 | <40 | 1360-1510 | 2*132 | 4540*2500*2911 | 13 | 2*0.55 | One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return. Air cooler lowers oil temperature, heater warms up oil temperature in winter. | 1200*790*1120 | 2 |
| VSI1140 | 450-520 | 225-260 | <50 | <45 | 1180-1300 | 2*200 | 5000*2716*3117 | 18.5 | 2*0.55 | One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return. Air cooler lowers oil temperature, heater warms up oil temperature in winter. | 1200*790*1120 | 2 |
| VSI1145 | 500-640 | 250-360 | <50 | <45 | 1200-1390 | 2*220 | 5450*2900*3300 | 19.5 | 2*0.55 | One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return. Air cooler lowers oil temperature, heater warms up oil temperature in winter. | 1200*790*1120 | 2 |
| VSI1250 | 320-490 | 260-350 | <50 | <45 | 1040-1220 | 2*280 | 6200*2830*3820 | 23 | 2*0.55 | One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return. Air cooler lowers oil temperature, heater warms up oil temperature in winter. | 1200*790*1120 | 2 |
| VSI1263 | 545-583 | 454-486 | <60 | <50 | 900-1150 | 2*315 | 5700*2980*3530 | 19 | 2*0.55 | One dual oil pump works one by one, and the standby oil pump is automatically turned on when the flow is low. High oil temperature, automatic shutdown without oil return. Air cooler lowers oil temperature, heater warms up oil temperature in winter. | 1200*790*1120 | 2 |
